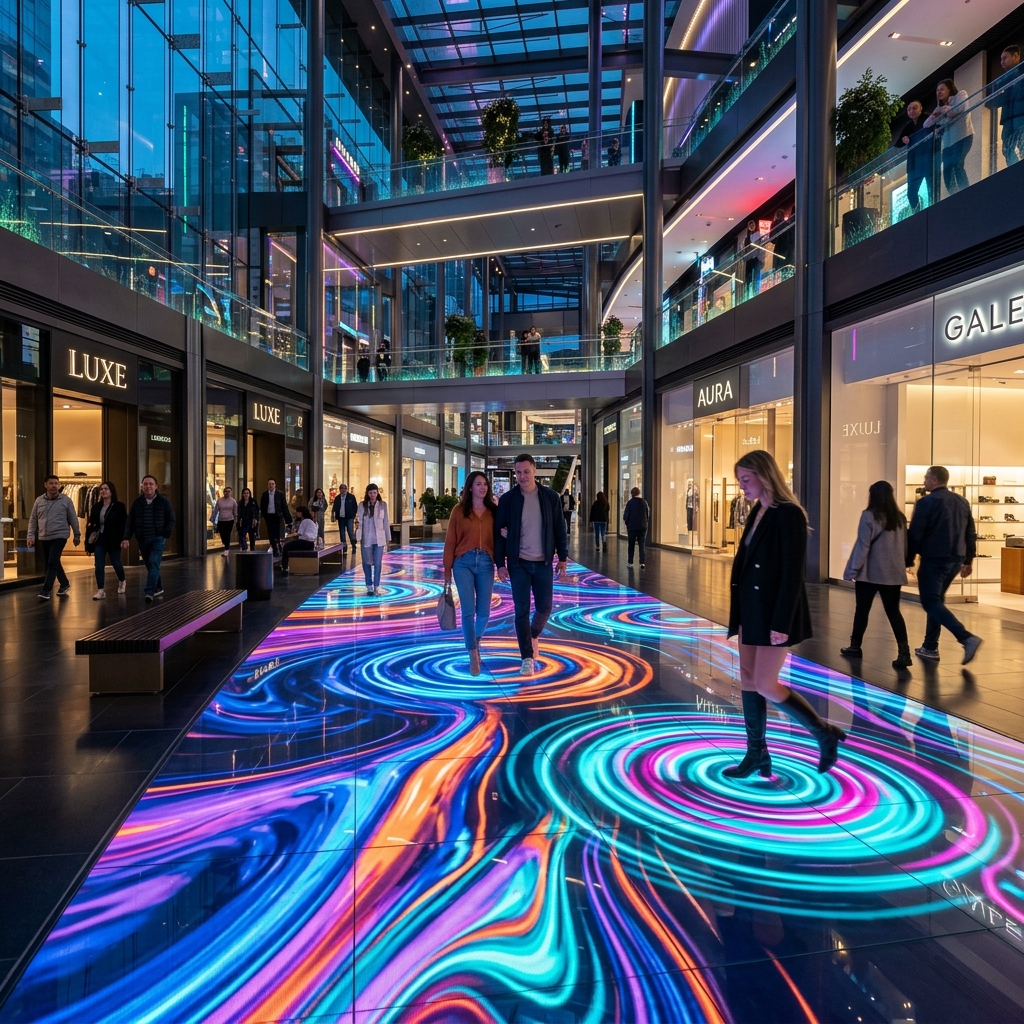

Interactive LED
Floor Display
A highly ruggedized, treadable digital flooring system integrating smart pressure-sensitive sensor arrays. Converts normal floor space into interactive media environments.
- ✓ 2000 kg/sqm extreme load capacity for vehicles & crowds
- ✓ Ultra-responsive optical/pressure sensor arrays integrated per cabinet
- ✓ Scratch-proof, anti-slip tempered safety glass overlay
Advanced Structural Engineering
Built to handle extreme weight loads while registering multi-touch interactions without latency.
Load Capacity
Reinforced steel-alloy support frames and dense pillars ensure each square meter handles 2,000kg, allowing cars and heavy crowds to cross safely.
Interactive Tracking
Optical pressure sensor arrays detect footwork immediately. Connects directly to interactive media servers via standard SDK protocols.
Full Weatherproofing
Enclosed cabinet shell protects components from spills, moisture, dust, and heavy floor cleaning protocols.
Technical Data
| Available Pixel Pitches | P3.91mm, P4.81mm options |
|---|---|
| LED Configuration | SMD2727 (Outdoor High-Contrast) / SMD1919 (Indoor High-Res) |
| Peak Brightness | 2,500 nits (Outdoor) / 1,200 nits (Indoor) |
| Refresh Rate | 3,840 Hz (Flicker-Free under cameras) |
| Weight per Cabinet | 11.5 kg (500x500mm structural frame) |
| Load Limit | 2,000 kg / sqm (Structurally Certified) |
| Surface Overlay | Tempered anti-slip frosted safety glass |
| Certifications | CE, FCC, RoHS, ETL compliance standard |
Frequently Asked Questions
Can cars drive on the interactive floor?
Yes. With a certified load capacity of 2,000 kg per square meter, the screen is engineered to support moving display vehicles for auto shows and luxury brand launches.
How do the interactive graphics work?
Each cabinet contains a matrix of optical sensors. When stepped on, they send coordinates to our control software, which triggers fluid dynamics or game animations in real-time.
Is it slippery when wet?
No. We use a custom frosted tempered safety glass cover with a micro-texture pattern that provides high traction even when liquid is spilled on the surface.
How is it maintained if a pixel fails?
Maintenance is front-serviceable. A vacuum suction tool is used to lift individual glass tiles, allowing module swaps in under 2 minutes without dismantling the floor structure.
Request Project Quote
Submit your installation dimensions and environmental requirements to get a custom engineering budget.
