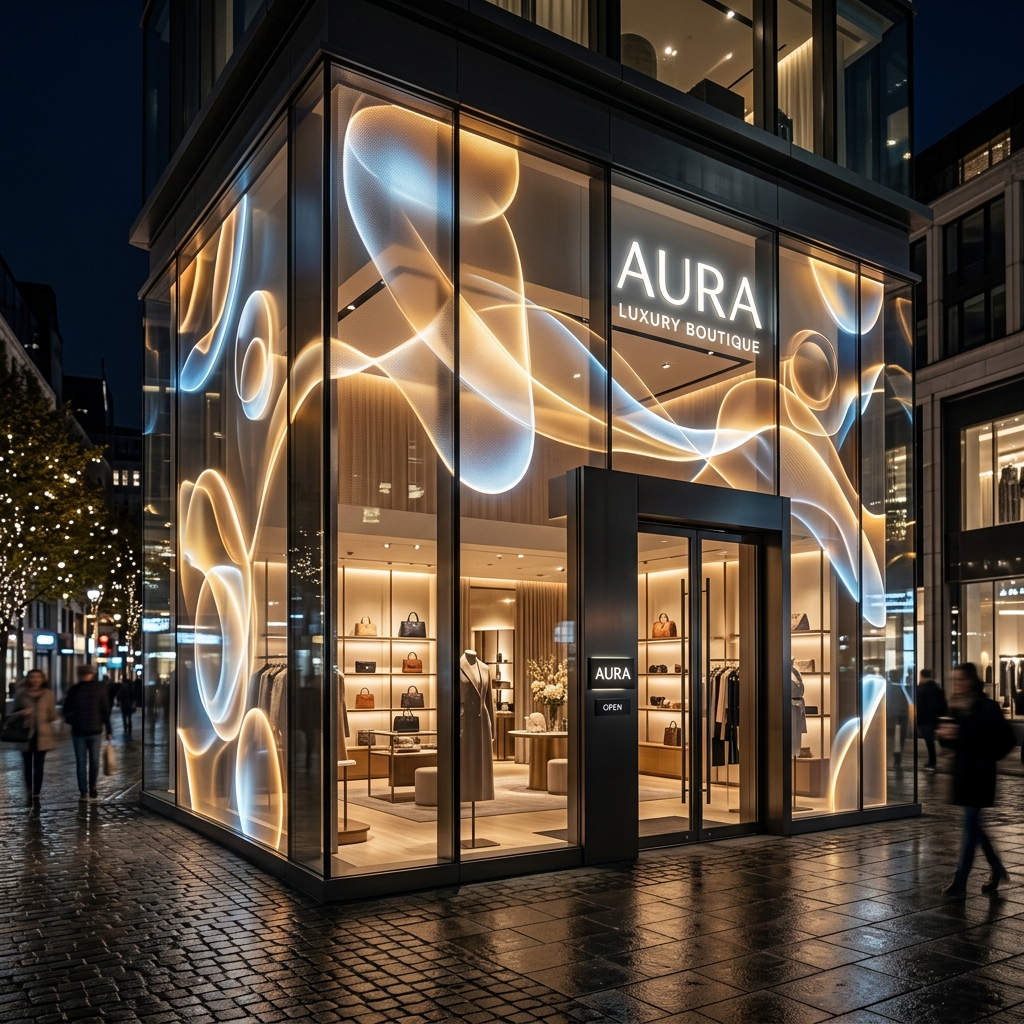

Laminated LED
Glass Screen
Diodes integrated directly inside structural laminated safety glass panels. Replaces normal facade glass sheets with full media capabilities, maintaining an 82% transparency rate.
- ✓ Diodes laminated inside double-layered safety glass
- ✓ 82% transparency rate preserves natural light flow
- ✓ Invisible power routing paths embedded in internal film layers
Media Glass Engineering
Integrating display pixels directly into structural architectural glazing panels.
Highest Transparency
By laminating sub-millimeter diodes within glass panes, we achieve the highest transparency available, leaving views clear.
Conductive Circuits
Circuit traces are printed onto a transparent interlayer film, avoiding visible cabling across the face of the glass facade.
Structural Safety Glass
Meets strict building codes for laminated safety glass. Built to handle external wind loads and temperature swings.
Technical Data
| Available Pixel Pitches | P5.0mm, P8.0mm, P10.0mm custom grid arrays |
|---|---|
| Glass Structural Type | Laminated double-layered safety glass (6mm + PVB/EVA + 6mm standard) |
| Transparency Rate | 80% - 85% (Depending on pitch config) |
| Peak Brightness | 3,000 - 3,500 nits (Daylight visible) |
| LED Placement | Embedded between glass sheets in high-clarity PVB interlayers |
| Power Connectivity | Border connectors hidden within window mullion slots |
| Thermal Protection | Self-cooling design, no fans required |
| Safety Certifications | SGCC, ANSI Z97.1, CE structural glazing compliant |
Frequently Asked Questions
What is the difference between Transparent Facades and Led Glass?
Transparent facades hang light strip grids behind existing windows. Led glass laminates the diodes directly inside the safety glass itself, replacing normal window panes entirely.
Can it be used as structural load-bearing building glass?
Yes. Our glass conforms to international codes (SGCC, ANSI) for laminated safety glazing, making it suitable for exterior building walls and storefront facades.
How is it powered if there are no cables visible?
We print sub-micron transparent circuits onto the inner PVB layers, routing power silently to panel borders which connect inside window frame slots.
Can these glass displays be built in custom sizes?
Yes. We manufacture glass panels custom-cut to match the dimensions and mullion layouts of your architectural glazing drawings.
Request Glass Proposal
Send us your glazing plans, glass thickness preferences, and structural grid drawings for a customized engineering layout proposal.
