Curved Opening &
Closing Screen

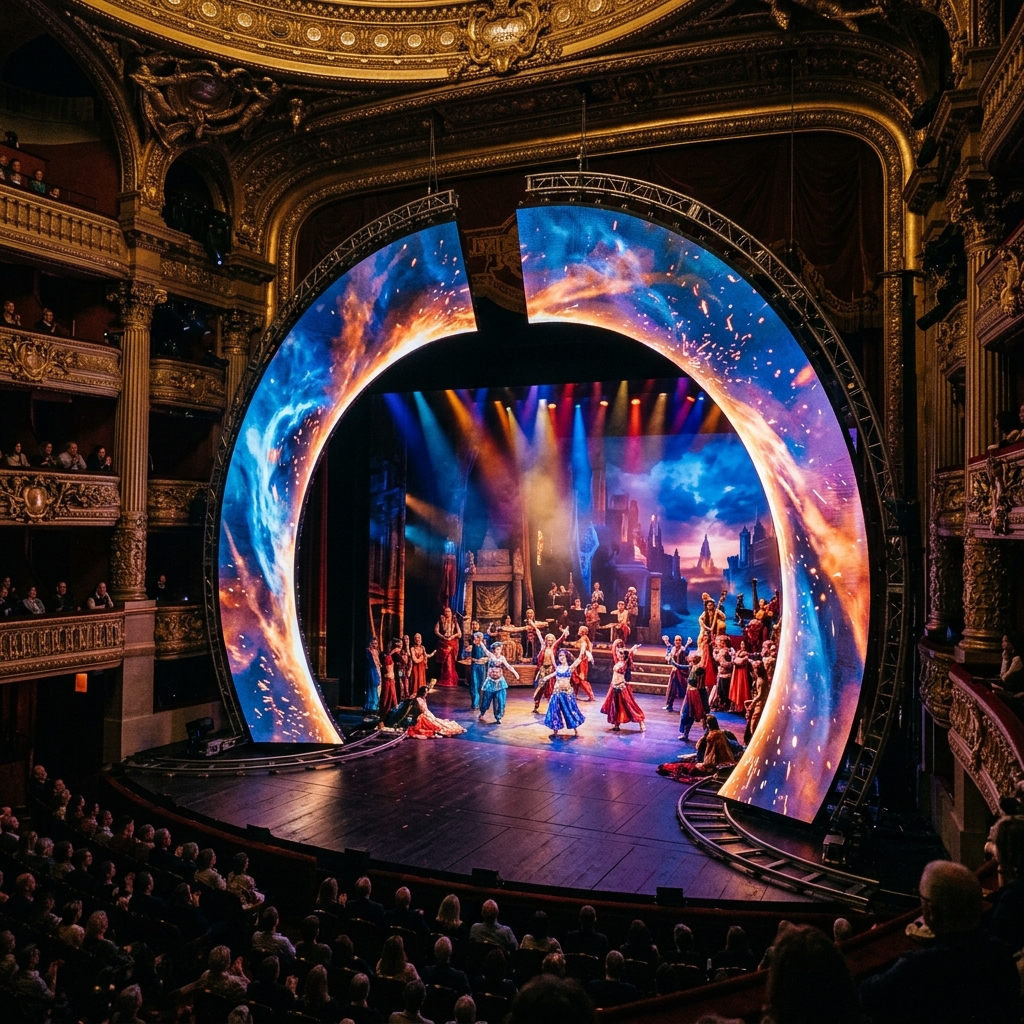

A kinetic curved screen that splits and opens along arc tracks. Controlled via DMX stage desks, the display separates smoothly to reveal speakers or props behind it.
- ✓ Curved sheet-metal arc tracks guide panels smoothly along paths
- ✓ Sync opening/closing movements directly via DMX console desks
- ✓ Safety micro-switches cut motor power if panels misalign
Dynamic Curved Movements
Engineered to deliver smooth, quiet reveals on theater stages and television studios.
Lighting Desk Integration
Map screen motion to standard DMX channels. Sync opening and closing sequences directly with lighting and audio cues.
Curved Guide Tracks
Heavy-duty sheet-metal arc tracks guide the curved cabinets. High-speed silent motors ensure a smooth split sequence.
Alignment Safety
Mechanical and electronic limit switches monitor the center split, shutting off motors if panels overlap or misalign.
Technical Data
| Available Pixel Pitches | P2.97mm, P3.91mm stage pitches |
|---|---|
| Radii Capabilities | Custom rolled tracks from R4.0m to R20.0m |
| Travel Travel Speed | Adjustable from 0.05 m/s to 0.8 m/s |
| Positioning Limit Sensors | Physical micro-switches + electronic encoder overrides |
| Peak Brightness | 1,500 nits - 1,800 nits (Adjustable) |
| Control Input Interface | DMX-512 / ArtNet / standard dry contacts |
| Noise Level | Under 40 dB (Extremely quiet for theater scenes) |
| Motor System | Dual-motor synchronized drive with safety brakes |
Frequently Asked Questions
What curved track radii are available?
We custom-roll tracks to match your stage layout, from a tight 4.0-meter radius for small theater stages up to large 20-meter sweeps for arenas.
Can I trigger opening and closing sequences via standard DMX?
Yes. The controller maps to standard DMX-512 and ArtNet protocols, letting lighting operators trigger movements directly from stage consoles.
Does the image look distorted where the screen splits?
No. When closed, mechanical alignment pins lock the screen halves together with sub-millimeter precision, making the seam invisible to the audience.
What happens if a track jams or loses power?
The system uses failsafe electromagnetic brakes that lock the screen in position if power drops. Backup manual overrides also let crews slide panels open by hand.
Request Kinetic Stage Quote
Send us your stage dimensions, track radii, and motion speed plans for a customized system design and proposal.
