Transparent Glass
LED Facade
Convert structural glass walls into bright advertising channels. Delivers up to 75% light transmission, allowing storefronts to display content without blocking natural daylight.
- ✓ 75% transparency rate maintains daylight and interior visibility
- ✓ 5,500 nits high brightness ensures visibility in direct noon sun
- ✓ Ultra-lightweight cabinets (only 6.5kg/sqm) reduce structural loads

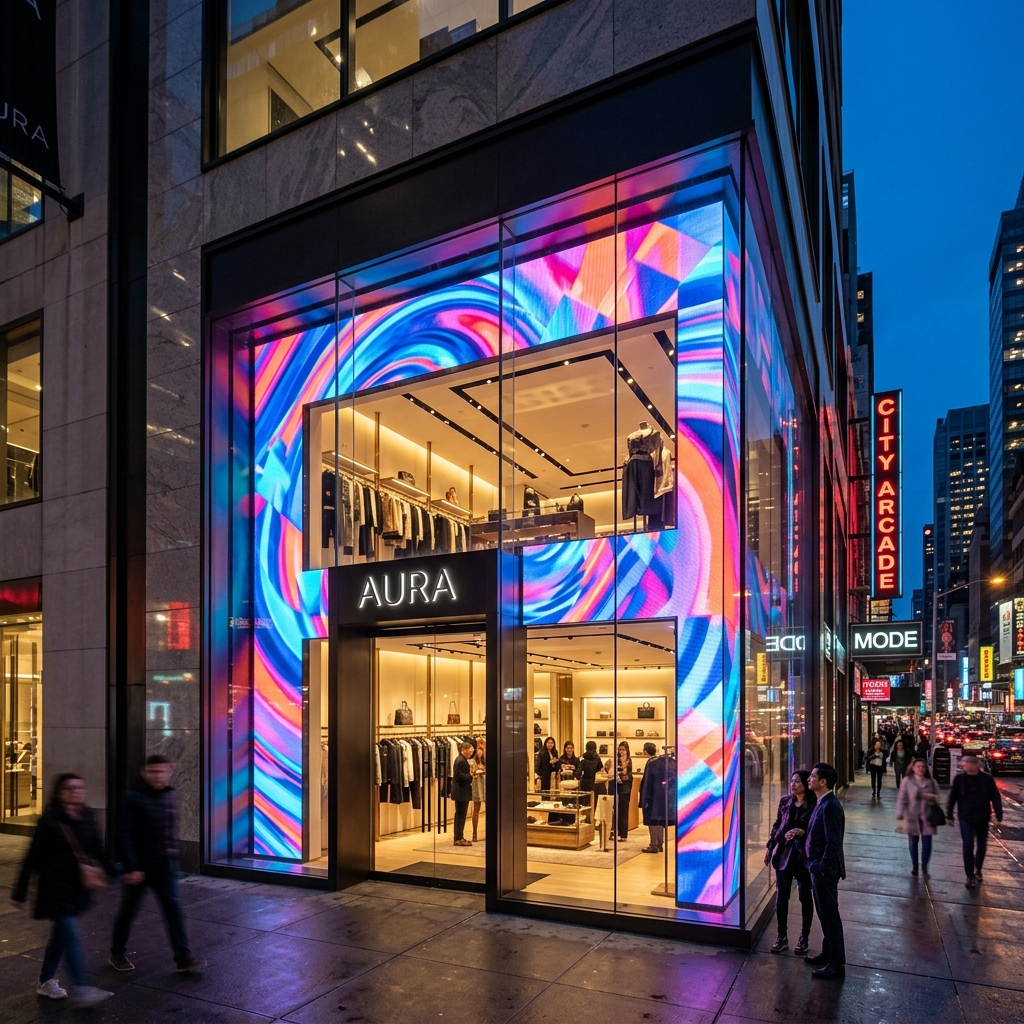

High Transparency Storefronts
Engineered to blend seamlessly into luxury retail locations and architectural office grids.
Daylight Transmission
Micro-strip pixel layout creates a high mesh ratio. From 3 meters away, the screen merges into the glass, leaving views clear.
Side-Emitting Tech
By placing SMD chips on the sides of the thin aluminum slats, we protect the diodes from dust while boosting direct viewing angles to 160°.
Ultra-Light Panels
No heavy steel backing frames. Thin profiles clamp onto structural window glazing, significantly cutting down shipping and labor costs.
Technical Data
| Pixel Pitch Options | P3.97mm (Horizontal) x P7.81mm (Vertical) / P7.81mm x P7.81mm |
|---|---|
| Cabinet Dimensions | 1000mm x 500mm / 1000mm x 1000mm customizable sizing |
| Transparency Rate | 70% - 80% (Depending on pitch option) |
| Peak Brightness | 4,500 - 5,500 nits (High daylight visibility) |
| LED Type | Side-emitting SMD1921 high-efficiency diodes |
| Weight per Cabinet | 6.5 kg / sqm (Thin profile frame) |
| Cabinet Thickness | Under 9.0 mm (Excluding power supply boxes) |
| Operating Temperature | -20°C to +50°C (Optimized thermal convection) |
Frequently Asked Questions
Can you see the display from inside the store?
From inside, you see a thin mesh screen resembling window tinting. Stores maintain full visibility, letting customers look out and natural daylight shine in.
Is the display bright enough for direct sunlight storefronts?
Yes. With peak brightness reaching 5,500 nits, the display remains clear and colorful even under direct afternoon sun, avoiding glare or washed-out images.
How does the cabinet mount onto window frames?
We supply custom lightweight aluminum hanging locks. These bars clamp onto existing glass frames or window mullions, avoiding the need for heavy, intrusive structural supports.
How do you clean the window behind the screen?
The screen panels are mounted 10-15cm away from the glass. They can be unhinged or slid open easily on quick-service tracks, allowing window washers to clean the glass surfaces.
Request Storefront Proposal
Send us your window dimensions, grid frame specs, and average ambient light levels for an engineering layout proposal.
